Place of Origin : shenzhen
Brand Name : YUCERA
Model Number : YRC-8Pro
MOQ : 1
Price : $13,500-17,000
Number of axes : 5
Processing method : Dry&Wet
Millable material : Zirconia block, PMMA, PEEK, WAX, Lithium Disilicate, Titanium
Material Thickness : 10-25mm
Total Power : 3.7kW
Dimension : 525*700*784mm
Weight : 150kg
Tool magazine capacity : 18 tools
Required air pressure : 6Bar
Water tank capacity : 10L
Power supply : Single-phase 220V 50/60Hz
X-Y-Zaxis working stroke : 160mm*115mm*105mm
Rotary axis A-axis : ±360°
Rotary axis B-axis : -30°~+90°
Speed : 60,000 rpm

Specification | Parameters |
Number of axes | 5 |
Processing method | Dry&Wet |
Millable material | Zirconia block, PMMA, PEEK, WAX, Lithium Disilicate, Titanium |
Applications | Crown, Bridge, Veneer, Inlay/Onlay, Abutment,Screw-Retained Bridge |
Material Thickness | 10-25mm |
Total Power | 3.7kW |
Dimension | 525*700*784mm |
Weight | 150kg |
Required air pressure | 6Bar |
Water tank capacity | 10L |
Power supply | Single-phase 220V 50/60Hz |
Control System | Embedded Multi-axis CNC System + Servo Motors |
X-Y-Zaxis working stroke | 160mm*115mm*105mm |
Rotary axis A-axis | ±360° |
Rotary axis B-axis | -30°~+90° |
Tool | 18 |
Speed | 60,000 rpm |
Power | 2.5kw |
Collet | Φ6 mm |
Cooling method | Water cooling |
Maximum Feed Rate | 5000/10000mm/min |












|
|

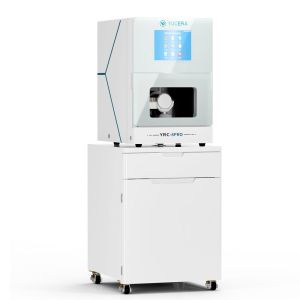

8Pro 5-Axis Dry Wet Dental Milling Machine 3.7kW for Zirconia Blocks Images |
